PTS645VSN19PSMTR92 LFS
Pts645v0 Series
6 mm SMT Side Actuated Tact Switch

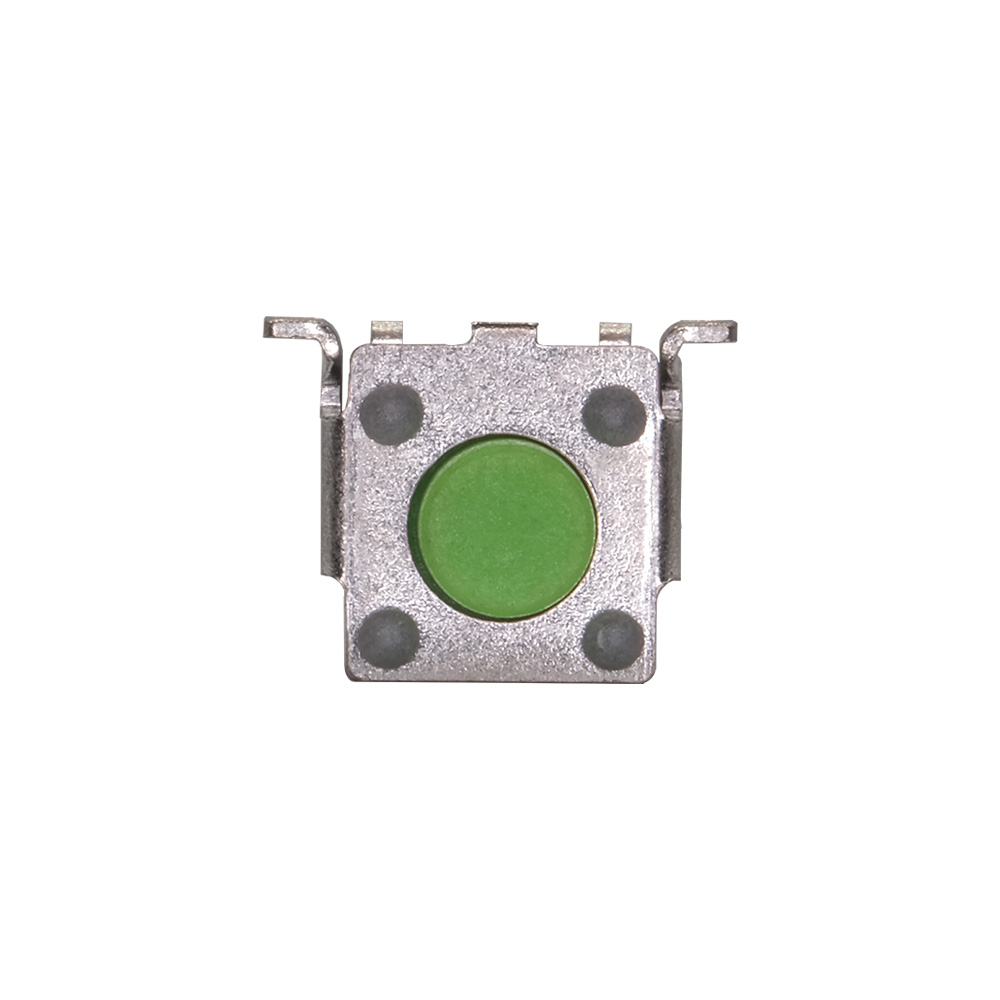

Tactile PTS645V product image
Tactile PTS645V product image
Tactile PTS645V product image
Tactile PTS645V product image

Image shown represents the product series and may not indicate the actual part number

Designers for power tooling, set top and access boxes, instrumentation and general consumer products turn to C&K’s PTS645V series of 6mm SMT side actuated tact switches to give their products the reliability and long life demanded by regular use. PTS645V switches also feature strong PCB soldering pads, full SMT processing and a compact 6 x 6mm design, to ensure they fit even the most innovative of designs.

Features and Benefits

  • Strong PCB soldering pads
  • Compact 6 x 6 mm design
  • Full SMT processing

Typical Applications

  • Set top and access boxes
  • Consumer products
  • Instrumentation
  • Power tools

Specifications

  • Solderability:

    This component is suited to the following methods: Infrared Reflow Soldering in accordance with IEC61760-1

  • Contact Resistance:

    < 100 milliohms

  • Electrical Life:

    100,000 cycles

  • Dielectric Strength:

    100 V AC (1mn)

  • Insulation Resistance:

    > 100 megohms

  • Operating Temperature:

    -40°C to 85°C

  • Contact Rating:

    50mA

PTS645VSN19PSMTR92 LFS

  • Most Common:

    No

  • Current Rating:

    50mA @ 12VDC

  • Circuit:

    SPST-NO

  • Mounting Type:

    Surface Mount, Right Angle

  • Sealing:

    Sealed - IP67

  • Illumination:

    No/None

  • Switch Function:

    Off-Mom

  • Electrical Life Cycles:

    100,000

  • Actuator Type:

    Standard

  • Actuator Height off PCB, from Pins:

    1.9mm

  • Actuator Orientation:

    Side Actuated

  • Termination Style:

    Gull Wing

  • Footprint:

    7.00mm x 7.10mm

  • Illumination Voltage (Nominal):

  • Illumination Type, Color:

  • Operating Force:

    100gf

  • Additional Features:

  • Packaging:

    Tape & Reel
