C&K SLIDE SWITCHES

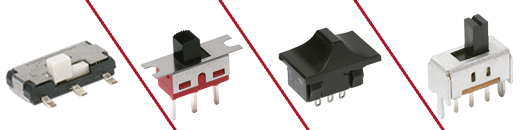

Slide switches

Featuring ultra-miniature, micro, miniature, standard, industrial and power versions, C&K has slide switches compatible for printed circuit board, surface mount and panel mount applications. Available in SPST, SPDT, SP3T, DPST, DPDT, 3PDT, 4PDT and 4P3T functions, C&K provides slide switches with positive detent, sealing, and shorting or non-shorting contacts options.

A Slide Switch for All Applications

C&K’s 16 series of slide switches give engineers more design flexibility and options when it comes to size, mounting, actuation types, ratings and packages. Whether you develop controllers or consumer goods; headphones or HVAC controls; portable speakers or laptops; audio equipment or alarms, C&K slide switches quickly integrate into your next design.

Applications

  • computers, peripherals and network devices (laptops, network hubs, routers, gaming controllers)
  • telecommunications equipment (telephone and cable modems, audio-visual devices, microphones)
  • consumer electronics (handheld games, remote controls, headphones, headsets, earbuds, channel selector on set-top boxes)
  • test and measurement equipment
  • appliances (small and large, both indoor and outdoor)
  • small equipment (handheld devices, portable tools, office equipment)
  • automotive and medical applications
  • thermostat select switch
  • lighting devices
Switch Type Min Product Dimension
(mm) (LxW)
Min Mount Height
- Top Actuator (H)
Min Mount Height
- Right Angle (H)
Travel to Make (mm) Max Rating Poles Number of Position
(Throws)
Momentary (MOM) or
Maintained
Packaging
Small 7.2 x 3.0 1.5 mm 1.5 mm 1.5 mm 100mA; 12 VDC 1/ 2 1/ 2/ 3 Maintained Tape & reel
Small 9 x 3.6 or 6.7 x 3.2 3.5 mm 0.7 mm 2 mm 0.3A; 6 VDC 1/ 2 1/ 2/ 3 MOM/ Maintained Tape & reel
Small 7.0 x 3.0 2 mm 2 mm 2.7 mm 0.3A; 4 VDC 1 1/ 2/ 3/ 4 MOM/ Maintained Tape & reel
Small 7.6 x 2.6 1.2 mm 1.3 mm 10mA; 5 VDC 1 2 MOM Tape & reel
Small 6.7 x 2.6 1.4 mm 1.5 mm 0.3A; 6 VDC 1 1/ 2/ 3 Maintained Tape & reel
Small 8.6 x 4.3 4 mm 3.9 mm 2 mm 0.1A; 12 VDC 1/ 2 1/ 2/ 3 Maintained Tray
Small 8.6 x 3.5 3.5 mm Min: 2 mm; Max: 5 mm 0.3A; 6 VDC or 30 VDC 1/ 2/ 4 1/ 2/ 3/ 4 Maintained Tape & reel or Tray
Small 8.6 x 4.3 3 mm Min: 2 mm; Max: 4 mm 0.3A; 30 VDC 1/ 2/ 4 1/ 2/ 3/ 4 Maintained Tape & reel or Tray
Small 10.03 x 6.02 6.38 mm 10.03 mm 2.29 mm 0.02A; 20 VAC or VDC 1/ 2 1/ 2 Maintained Tape & reel
Small 10.16 x 5.08 5.08 mm 9.81 mm 3.05 mm 3A; 20 VAC or VDC 1 1/ 2 Maintained Tray
Small 7.01 x 4.5 5.79 mm 5.38 mm 1.02 mm 0.02A; 20 VAC or VDC 1 1/ 2 Maintained Tape & reel
Medium 12.7 x 6.6 6.35 mm 6.6 mm Min: 2.16 mm; Max: 2.41 mm 6A; 20 VAC or VDC 1/ 2 1/ 2 MOM/ Maintained Tray
Large 19.10 x 10.79 or 20.32 x 13.97 9.09 mm 7.92 mm Min: 3.30 mm; Max: 4.06 mm 4A; 125 VAC or 28 VDC 1/ 2 1/ 2/ 3/ 4 MOM/ Maintained Tray
Large 27.48 x 17.55 8.13 mm 3.68 mm 11A; 125 VAC or 28 VDC 1/ 2 1/ 2 Maintained Tray
Large 22.99 x 13.46 7.11 mm 4.57 mm 6A or 15A; 125 VAC or 20 VDC 1/ 2 1/ 2 MOM/ Maintained Tray
Large 26.19 x 16.50 15.75 mm 15.75 mm 6.60 mm 10A; 125 VAC or 30 VDC 1 2 1/ 2 Maintained Tray
