Space Splice

Space Splice Series
Space Splice

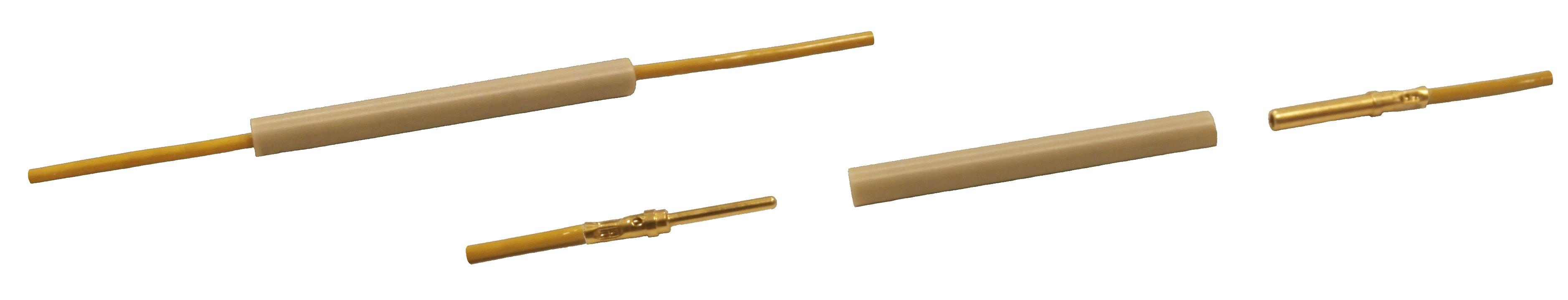

img description

Image shown represents the product series and may not indicate the actual part number

Features and Benefits

  • One way connector
  • Using D*MA crimpable contacts technology
  • EPPL2 product (ESA/ESCC European Prefered Part List part2)
  • Replacement of manual splices by standard solution
  • Supplied without contacts
  • Non-outgassing

Typical Applications

  • Space equipements
  • Satellites harnesses and payloads
  • Launchers
  • Engineering
  • Military and Avionics

Associated Products

Specifications

  • Working Voltage:

    300 Vrms at sea level - 250 Vrms at 33000m altitude

  • Rated current Contact Standard Density size 20/20:

    7.5 A

  • Rated current Contact Standard Density size 20/26:

    3.0 A

  • Contact resistance (rated current):

    5.0 milliohms max

  • Insulation resistance (500 VDC):

    5000 megohms min

  • Voltage proof Standard Density:

    1250 Vrms / 2.0 mA leakage current

  • temperature range:

    -55°C to 125°C

  • residual magnetism level:

    200 Gamma (NMB)
