C&K NAVIGATION SWITCHES



Navigation switches

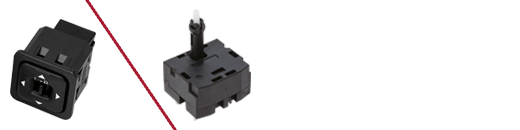

C&K’s navigation switches are miniature, compact and multi-directional products. The CS series features a 4-way adjustable direction switch designed for mirror control.

Applications

C&K navigation switches are designed for the following applications:

  • automotive (mirror controls)
  • industrial (mirror controls)
  • white goods
  • entertainment systems (including handheld devices)
  • appliances
  • remote controls
  • electronic components (desk phones, keyboards, printers)
Number of Directions Size on PCB (L x W) Total Height Actuation Force Max Voltage Max Switching Power Life Cycles (Each Way) Sealing
2 or 4 20.7 x 18.0 mm or 26.2 x 26.2 mm 27.85 or 31.85 or 27.6 mm 5.3 or 6N 14 V DC 15 A 30,000 Unsealed
4 40 x 40 mm 58 mm 4.9N 12 V DC 0.2 A 10,000 Unsealed
