Tactile

KSCXA96JLFS
Ksc0Xa0 Series
Raised cage, Soft Sound Tactile Switch

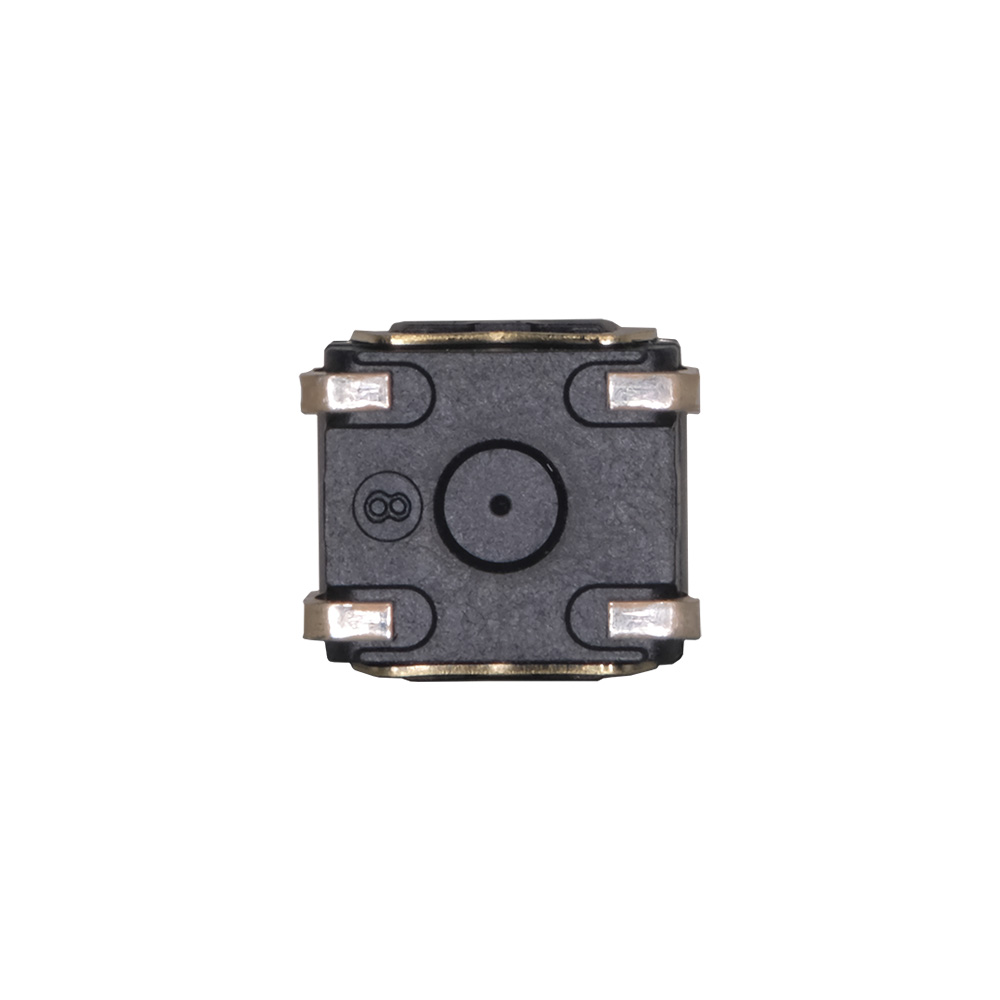

Tactile KSC XA product image
Tactile KSC XA product image
Tactile KSC XA product image

Image shown represents the product series and may not indicate the actual part number

KSC XA soft sound tactile switch is our new haptic and sound proposal for ultra soft feedback in the car. Is still using the KSC compact form factor (6.2 x 6.2 x 4.9 mm) in SMT, with hard actuator and an extended cage, ensuring high reliability. KSC XA tactile switch offers positive tactile feedback. Various choices of actuation force are available.

Features and Benefits

  • 6.2 x 6.2 form factor
  • Actuator height 4.9 mm
  • IP67

Typical Applications

  • Automotive interior & openings (gear shift paddle, steering wheel, window lifter, seat adjustment modules, trunk & door handle modules)
  • Medical & industrial electronics (front panel, instrumentation)

Specifications

  • Solderability:

    Lead free reflow soldering process according with IEC61760-1

  • Contact Rating:

    42mA

  • Contact Resistance:

    < 100 milliohms

  • Dielectric Strength:

    > 250 Vrms

  • Insulation Resistance:

    > 1000 megohms

  • Operating Temperature:

    -40°C to 95°C

  • Electrical Life:

    1 000 000; 500 000; 150 000

KSCXA96JLFS

  • Most Common:

    No

  • Current Rating:

    1VA

  • Circuit:

    SPST-NO

  • Mounting Type:

    Surface Mount

  • Sealing:

    Sealed - IP67

  • Illumination:

    No/None

  • Switch Function:

    Off-Mom

  • Electrical Life Cycles:

    300,000

  • Actuator Type:

    Hard

  • Actuator Height off PCB, from Pins:

    4.9 mm

  • Actuator Orientation:

    Top Actuated

  • Termination Style:

    J leads

  • Footprint:

    6.2 mm x 6.2 mm

  • Illumination Voltage (Nominal):

  • Illumination Type, Color:

  • Operating Force:

    9.6N

  • Additional Features:

  • Packaging:

    Tape & Reel
