Rocker

CA Series
Power Rocker Switch

img description

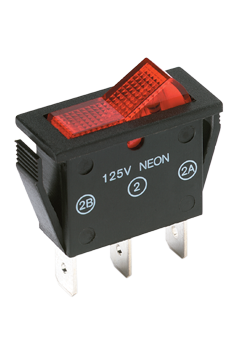

Image shown represents the product series and may not indicate the actual part number

Features and Benefits

  • Illuminated actuator
  • Various actuator styles

Typical Applications

  • Appliances
  • Handling and packaging machines

Specifications

  • Contact Rating:

    15 A @ 125 V AC; 10 A @ 250 V AC; 1/4 HP @ 125 V AC or 250 V AC

  • Electrical Life:

    10,000 make-and-break cycles at full load

  • Insulation Resistance:

    10⁹ ohms min.

  • Dielectric Strength:

    1,000 Vrms min. @ sea level

  • Certifications:

= Most Common

Part Number
Current Rating Circuit Mounting Type Sealing Illumination Switch Function Electrical Life Cycles Voltage Rating - AC Voltage Rating - DC Color - Actuator/Cap Actuator Marking Illumination Type, Color Illumination Voltage (Nominal) Termination Style Additional Features Panel Cutout Dimensions Actuator Type Packaging
15A (AC) SPDT Panel Mount, Front, Snap-In Unsealed None On-On 10,000 125V Black O - Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 10.67mm Concave (Standard V) Bulk
15A (AC) SPST Panel Mount, Front, Snap-In Unsealed Yes On-Off 10,000 125V Red O - Neon, Red 125 VAC Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 10.67mm Concave (Standard V) - Illuminated Bulk
15A (AC) SPST Panel Mount, Front, Snap-In Unsealed Yes On-Off 10,000 125V Green No Marking Neon, Green 125 VAC Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 10.67mm Concave (Standard V) - Illuminated Bulk
15A (AC) SPST Panel Mount, Front, Snap-In Unsealed Yes On-Off 10,000 125V Green O - Neon, Green 250 VAC Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 10.67mm Concave (Standard V) - Illuminated Bulk
15A (AC) SPST Panel Mount, Front, Snap-In Unsealed Yes On-Off 10,000 125V Green No Marking Neon, Green 250 VAC Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 10.67mm Concave (Standard V) - Illuminated Bulk
15A (AC) SPST Panel Mount, Front, Snap-In Unsealed Yes On-Off 10,000 125V Red O - Neon, Red 125 VAC Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 10.67mm Concave (Curved) - Illuminated Bulk
15A (AC) SPST Panel Mount, Front, Snap-In Unsealed Yes On-Off 10,000 125V Red O - Neon, Red 250 VAC Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 10.67mm Concave (Curved) - Illuminated Bulk
15A (AC) DPDT Panel Mount, Front, Snap-In Unsealed None On-On 10,000 125V White No Marking Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 22.00mm Concave (Standard V) Bulk
15A (AC) DPDT Panel Mount, Front, Snap-In Unsealed None On-On 10,000 125V Black O - Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 22.00mm Concave (Standard V) Bulk
15A (AC) DPDT Panel Mount, Front, Snap-In Unsealed None On-On 10,000 125V Black No Marking Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 22.00mm Concave (Standard V) Bulk
15A (AC) DPDT Panel Mount, Front, Snap-In Unsealed None On-On 10,000 125V Black O - Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 22.00mm Concave (Curved) Bulk
15A (AC) DPDT Panel Mount, Front, Snap-In Unsealed None On-On 10,000 125V Red O - Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 22.00mm Concave (Curved) Bulk
15A (AC) DPST Panel Mount, Front, Snap-In Unsealed None On-Off 10,000 125V Black On - Off, Vertical Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 22.00mm Concave (Standard V) Bulk
15A (AC) DPST Panel Mount, Front, Snap-In Unsealed None On-Off 10,000 125V Black O I Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 22.00mm Concave (Standard V) Bulk
15A (AC) DPST Panel Mount, Front, Snap-In Unsealed None On-Off 10,000 125V Black O - Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 22.00mm Concave (Standard V) Bulk
15A (AC) DPST Panel Mount, Front, Snap-In Unsealed None On-Off 10,000 125V Black No Marking Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 22.00mm Concave (Standard V) Bulk
15A (AC) DPST Panel Mount, Front, Snap-In Unsealed None On-Off 10,000 125V Black O I Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 22.00mm Concave (Curved) Bulk
15A (AC) DPST Panel Mount, Front, Snap-In Unsealed None On-Off 10,000 125V Black O - Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 22.00mm Concave (Curved) Bulk
15A (AC) DPST Panel Mount, Front, Snap-In Unsealed None On-Off 10,000 125V Black No Marking Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 22.00mm Concave (Curved) Bulk
15A (AC) DPST Panel Mount, Front, Snap-In Unsealed None On-Off 10,000 125V Red On - Off, Vertical Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 22.00mm Concave (Curved) Bulk
15A (AC) DPST Panel Mount, Front, Snap-In Unsealed None On-Off 10,000 125V Red O I Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 22.00mm Concave (Curved) Bulk
15A (AC) DPST Panel Mount, Front, Snap-In Unsealed None On-Off 10,000 125V Red O - Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 22.00mm Concave (Curved) Bulk
15A (AC) DPST Panel Mount, Front, Snap-In Unsealed None On-Off 10,000 125V Green O - Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 22.00mm Concave (Curved) Bulk
15A (AC) DPST Panel Mount, Front, Snap-In Unsealed Yes On-Off 10,000 125V Red On - Off, Vertical Neon, Red 125 VAC Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 22.00mm Concave (Standard V) - Illuminated Bulk
15A (AC) DPST Panel Mount, Front, Snap-In Unsealed Yes On-Off 10,000 125V Red O I Neon, Red 125 VAC Quick Connect - 0.250" (6.3mm) Positive Detent Rectangular - 28.20mm x 22.00mm Concave (Standard V) - Illuminated Bulk
